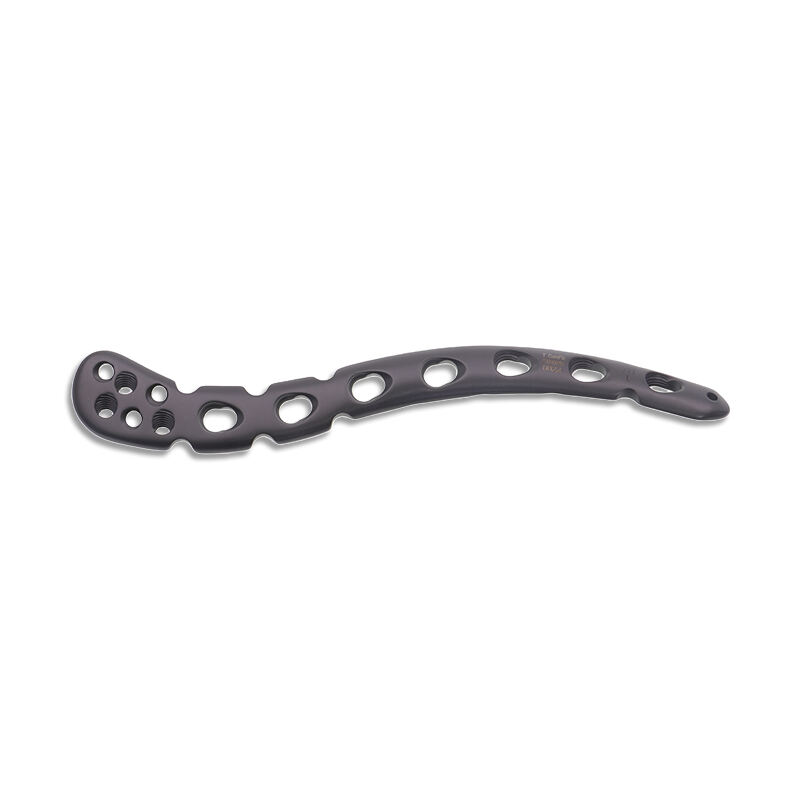

Distal Clavicle Locking Plate 2.7/3.5mm

Fixation of fractures, nonunions, osteotomies and pseudoarthroses of the clavicle, for the treatment of acromioclavicular dislocations.

Adaptive screw system：2.7/3.5mm

Material: Titanium

Product Description

Ref Code	Product Description	Specification	Length (mm)	Material	Screw
77440305	LCP Distal Clavicle Plate	5 holes , left	94	T	2.7/3.5mm
77440306	LCP Distal Clavicle Plate	6 holes , left	107	T	2.7/3.5mm
77440307	LCP Distal Clavicle Plate	7 holes , left	123	T	2.7/3.5mm
77440308	LCP Distal Clavicle Plate	8 holes , left	136	T	2.7/3.5mm
77440405	LCP Distal Clavicle Plate	5 holes , right	94	T	2.7/3.5mm
77440406	LCP Distal Clavicle Plate	6 holes , right	107	T	2.7/3.5mm
77440407	LCP Distal Clavicle Plate	7 holes , right	123	T	2.7/3.5mm
77440408	LCP Distal Clavicle Plate	8 holes , right	136	T	2.7/3.5mm

The CareFix Upper Limb Locking Plate is designed for reduction and fixation of complex fractures in the upper extremities. Featuring a pre-contoured arc design, it anatomically conforms to the natural curvature of the humerus, ulna, radius, and other upper limb bones, ensuring precise alignment and stable fixation for comminuted fractures while minimizing soft tissue disruption.

Indications

‌Comminuted fractures of the humerus, ulna, and radius‌.
Complex upper extremity injuries‌ requiring anatomical reduction and biomechanical stability.

Features

‌Pre-contoured anatomical shaping‌: Matches bone curvature to enhance stability and reduce surgical complexity.
‌Multi-angle locking screws‌: Rigid fixation for comminuted or unstable fractures in upper limb bones.
Low-profile design‌: Minimizes soft tissue irritation and supports early rehabilitation.
