Limited Compression Locking Plate 1.5/2.0mm 2.4/2.7mm

Product Description

Ref Code	Product Description	Specification	Length (mm)	Material	Screw

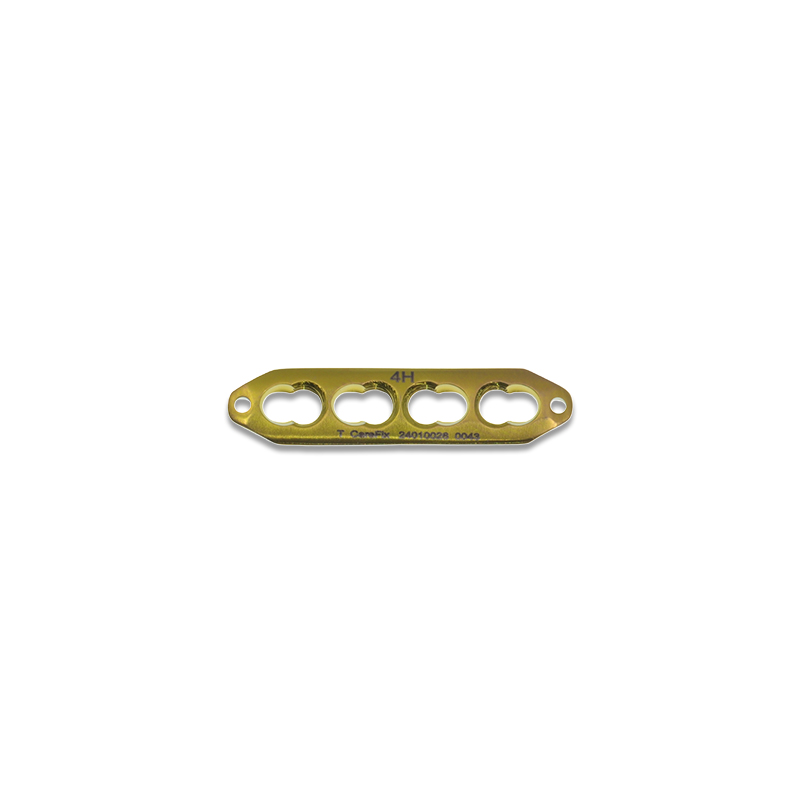

77300604	LCP Plate	4 holes	29	T	1.5/2.0mm
77300605	LCP Plate	5 holes	35	T	1.5/2.0mm
77300606	LCP Plate	6 holes	41	T	1.5/2.0mm
77300607	LCP Plate	7 holes	47	T	1.5/2.0mm

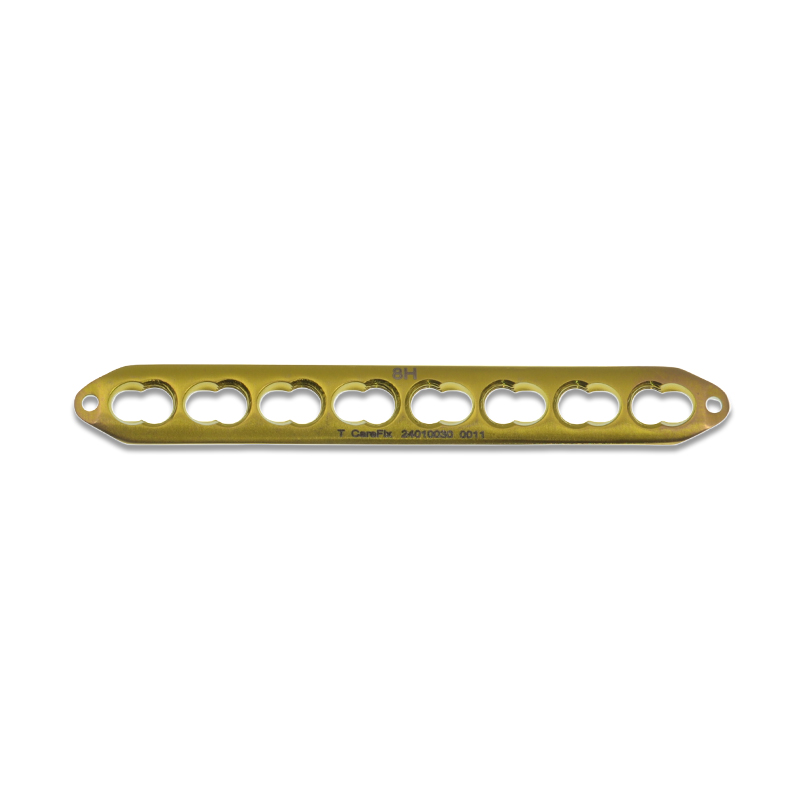

77300608	LCP Plate	8 holes	53	T	1.5/2.0mm
77301604	LCP Plate	4 holes	37	T	2.4/2.7mm
77301605	LCP Plate	5 holes	45	T	2.4/2.7mm
77301606	LCP Plate	6 holes	53	T	2.4/2.7mm
77301607	LCP Plate	7 holes	61	T	2.4/2.7mm
77301608	LCP Plate	8 holes	69	T	2.4/2.7mm

The CareFix Hand, Foot & Ankle Locking Plate is designed for complex fractures in delicate anatomical regions. Featuring an anatomically contoured design, it precisely matches the curvature of hand, foot, and ankle bones, enabling stable fixation while supporting minimally invasive implantation. This system is ideal for comminuted fractures of the ankle joint, metacarpal/metatarsal fractures, and other intricate injuries requiring high-precision stabilization.

Indications

‌Comminuted ankle fractures‌, ‌metacarpal/metatarsal fractures‌, and ‌periarticular fractures‌.
‌Complex hand/foot trauma‌ requiring biomechanical stability in small bones.

Features

‌Anatomical curvature adaptation‌: Ensures optimal bone-plate contact for reduced soft tissue irritation.
‌Low-profile, tapered plate ends‌: Facilitates minimally invasive insertion in narrow anatomical spaces.
‌Multi-angle locking screws‌: Provides rigid fixation for comminuted or unstable fractures.
‌K-wire/suture hole compatibility‌: Enables temporary fixation and alignment during surgery.
‌Titanium alloy construction‌: Combines lightweight durability with biocompatibility for long-term safety.
