| Ref Code |
Product Description |
Specification |
Length (mm) |
Material |
Screw |
| 77415621 |
LCP Calcaneus Plate Ⅲ |
Small , left |
59.6 |
T |
3.5mm |
| 77415622 |
LCP Calcaneus Plate Ⅲ |
Medium, left |
66 |
T |
3.5mm |
| 77415623 |
LCP Calcaneus Plate Ⅲ |
Large, left |
72 |
T |
3.5mm |
| 77415721 |
LCP Calcaneus Plate Ⅲ |
Small , right |
59.6 |
T |
3.5mm |
| 77415722 |
LCP Calcaneus Plate Ⅲ |
Medium, right |
66 |
T |
3.5mm |
| 77415723 |
LCP Calcaneus Plate Ⅲ |
Large, right |
72 |
T |
3.5mm |

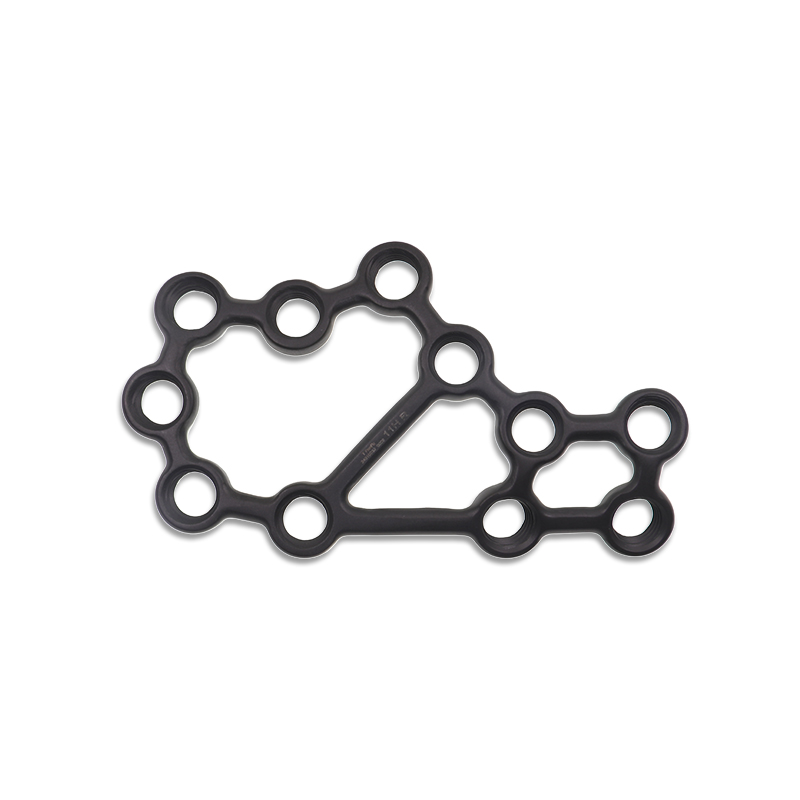

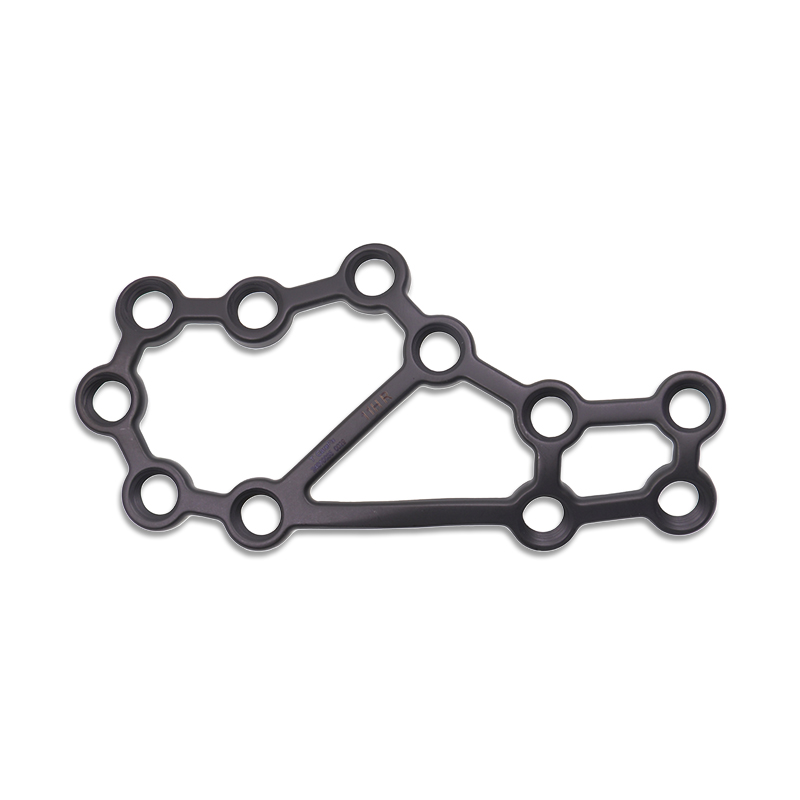

The CareFix Hand, Foot & Ankle Locking Plate is designed for complex fractures in delicate anatomical regions. Featuring an anatomically contoured design, it precisely matches the curvature of hand, foot, and ankle bones, enabling stable fixation while supporting minimally invasive implantation. This system is ideal for comminuted fractures of the ankle joint, metacarpal/metatarsal fractures, and other intricate injuries requiring high-precision stabilization.
Comminuted ankle fractures, metacarpal/metatarsal fractures, and periarticular fractures.
Complex hand/foot trauma requiring biomechanical stability in small bones.
Anatomical curvature adaptation: Ensures optimal bone-plate contact for reduced soft tissue irritation.
Low-profile, tapered plate ends: Facilitates minimally invasive insertion in narrow anatomical spaces.
Multi-angle locking screws: Provides rigid fixation for comminuted or unstable fractures.
K-wire/suture hole compatibility: Enables temporary fixation and alignment during surgery.
Titanium alloy construction: Combines lightweight durability with biocompatibility for long-term safety.
