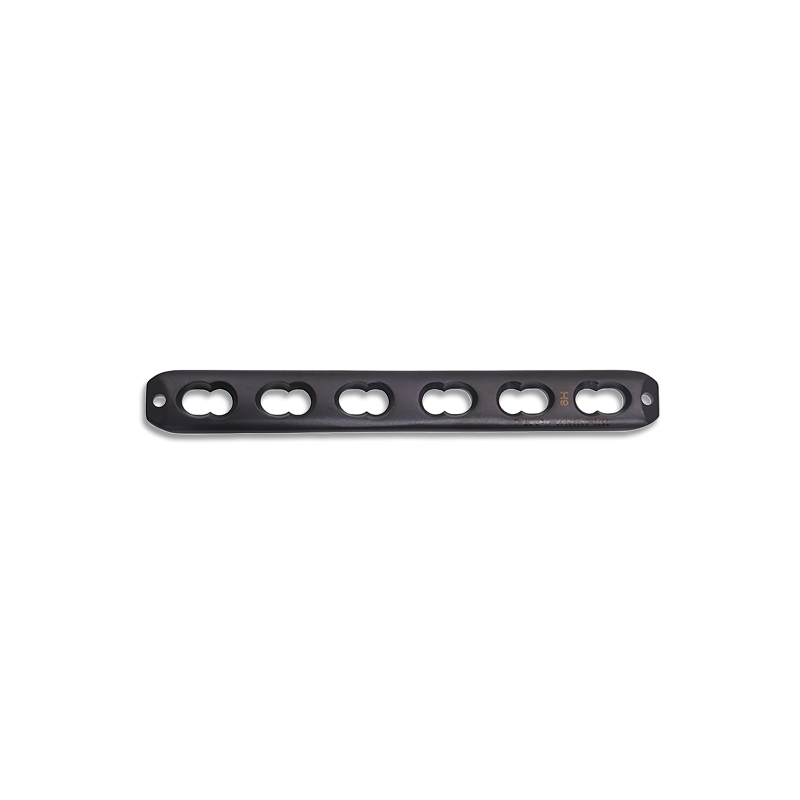

Limited Compression Locking Plate 3.5mm

Locking compression plate is used for fixation of fractures of clavicle, scapula, olecranon, humerus, radius, ulna, pelvis, distal tibia, fibula

Adaptive screw system：3.5mm

Material: Titanium

Product Description

Ref Code	Product Description	Specification	Length (mm)	Material	Screw
77402605	LCP Plate	5 holes	73	T	3.5mm
77402606	LCP Plate	6 holes	86	T	3.5mm
77402607	LCP Plate	7 holes	99	T	3.5mm
77402608	LCP Plate	8 holes	112	T	3.5mm
77402609	LCP Plate	9 holes	125	T	3.5mm
77402610	LCP Plate	10 holes	130	T	3.5mm

The CareFix Upper Limb Locking Plate is designed for reduction and fixation of complex fractures in the upper extremities. Featuring a pre-contoured arc design, it anatomically conforms to the natural curvature of the humerus, ulna, radius, and other upper limb bones, ensuring precise alignment and stable fixation for comminuted fractures while minimizing soft tissue disruption.

Indications

‌Comminuted fractures of the humerus, ulna, and radius‌.
Complex upper extremity injuries‌ requiring anatomical reduction and biomechanical stability.

Features

‌Pre-contoured anatomical shaping‌: Matches bone curvature to enhance stability and reduce surgical complexity.
‌Multi-angle locking screws‌: Rigid fixation for comminuted or unstable fractures in upper limb bones.
Low-profile design‌: Minimizes soft tissue irritation and supports early rehabilitation.
