Distal Volar Radius Ⅲ Locking Plate 8holes on head 2.7mm

Fixation of complex intra-articular and extra-articular fractures and osteotomies of the distal radius in adults, skeletally mature adolescents.

Adaptive screw system：2.7mm

Material: Titanium

Product Description

Ref Code	Product Description	Specification	Length (mm)	Material	Screw
77420703	LCP Volar Distal Radius Plate Ⅲ head 8holes	3 holes, left	50.2	T	2.7mm
77420704	LCP Volar Distal Radius Plate Ⅲ head 8holes	4 holes , left	58.2	T	2.7mm
77420705	LCP Volar Distal Radius Plate Ⅲ head 8holes	5 holes , left	66.2	T	2.7mm
77420706	LCP Volar Distal Radius Plate Ⅲ head 8holes	6 holes , left	74.2	T	2.7mm
77420803	LCP Volar Distal Radius Plate Ⅲ head 8holes	3 holes, right	50.2	T	2.7mm
77420804	LCP Volar Distal Radius Plate Ⅲ head 8holes	4 holes , right	58.2	T	2.7mm

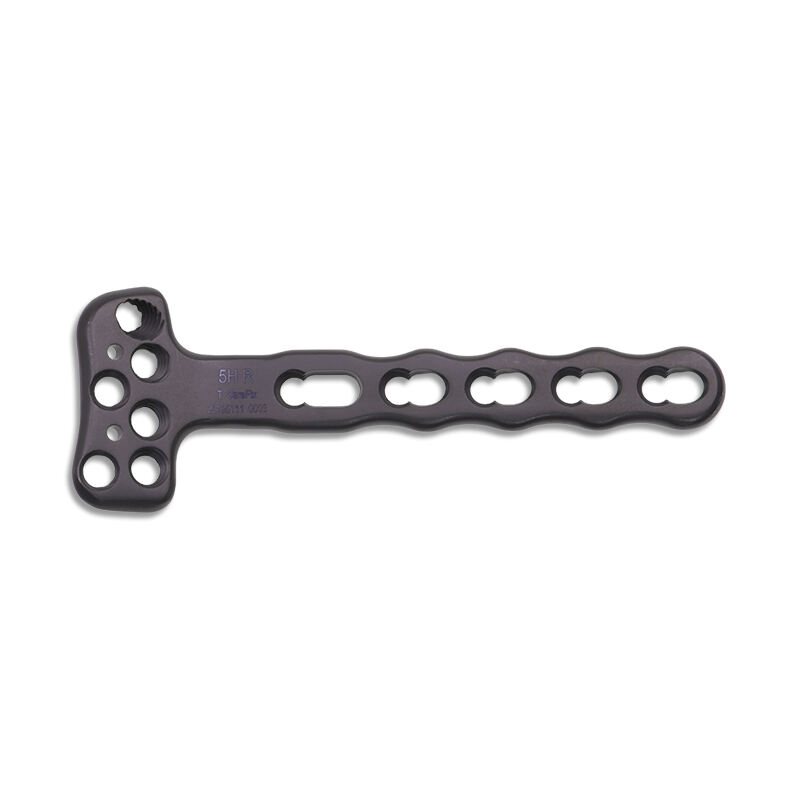

77420805	LCP Volar Distal Radius Plate Ⅲ head 8holes	5 holes , right	66.2	T	2.7mm
77420806	LCP Volar Distal Radius Plate Ⅲ head 8holes	6 holes , right	74.2	T	2.7mm

The CareFix Upper Limb Locking Plate is designed for reduction and fixation of complex fractures in the upper extremities. Featuring a pre-contoured arc design, it anatomically conforms to the natural curvature of the humerus, ulna, radius, and other upper limb bones, ensuring precise alignment and stable fixation for comminuted fractures while minimizing soft tissue disruption.

Indications

‌Comminuted fractures of the humerus, ulna, and radius‌.
Complex upper extremity injuries‌ requiring anatomical reduction and biomechanical stability.

Features

‌Pre-contoured anatomical shaping‌: Matches bone curvature to enhance stability and reduce surgical complexity.
‌Multi-angle locking screws‌: Rigid fixation for comminuted or unstable fractures in upper limb bones.
Low-profile design‌: Minimizes soft tissue irritation and supports early rehabilitation.
