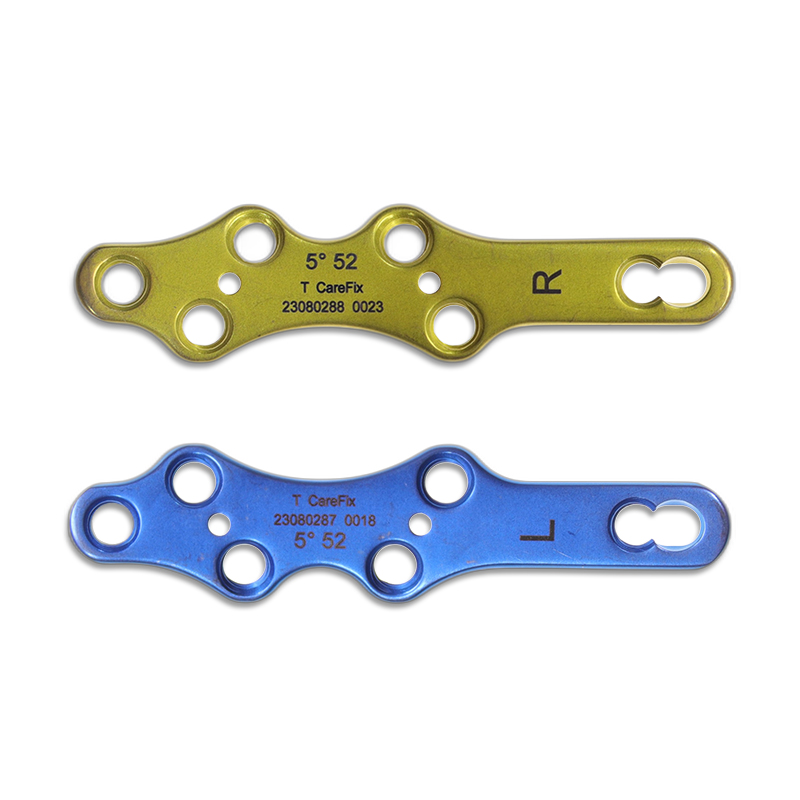

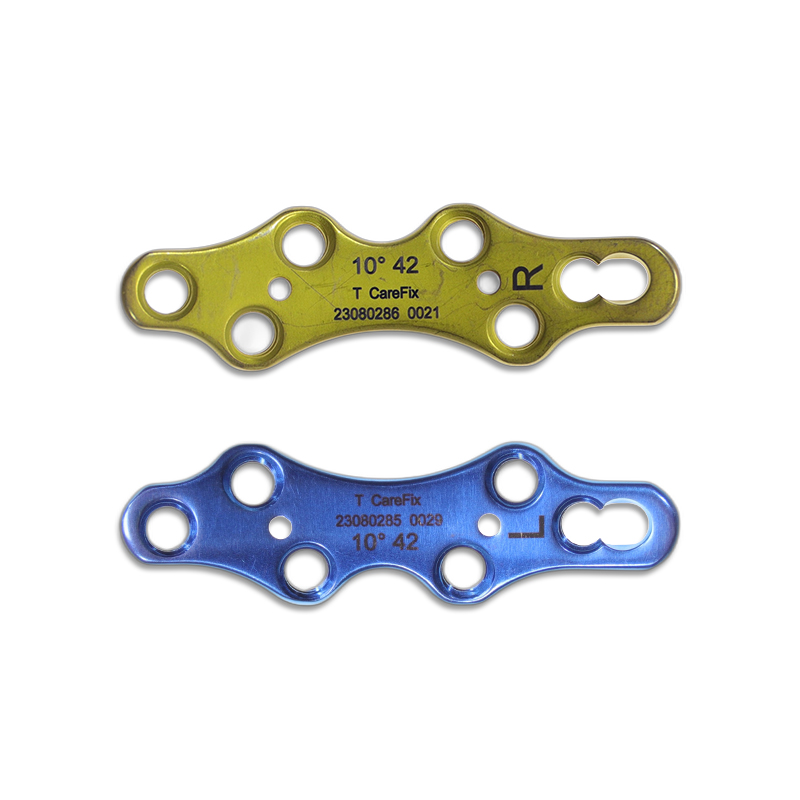

1st MTP Fusion Locking Plate 2.4/2.7mm

Product Description

Ref Code	Product Description	Specification	Length (mm)	Material	Screw
77311714	1st MTP Fusion LCP	5°, left, 42	42	T	2.4/2.7mm
77311715	1st MTP Fusion LCP	5°, left, 52	52	T	2.4/2.7mm
77311716	1st MTP Fusion LCP	5°, left, 57	57	T	2.4/2.7mm
77311917	1st MTP Fusion LCP	10°, left, 42	42	T	2.4/2.7mm
77311918	1st MTP Fusion LCP	10°, left, 52	52	T	2.4/2.7mm
77311919	1st MTP Fusion LCP	10°, left, 57	57	T	2.4/2.7mm
77311814	1st MTP Fusion LCP	5°, right, 42	42	T	2.4/2.7mm
77311815	1st MTP Fusion LCP	5°, right, 52	52	T	2.4/2.7mm
77311816	1st MTP Fusion LCP	5°, right, 57	57	T	2.4/2.7mm
77312017	1st MTP Fusion LCP	10°, right, 42	42	T	2.4/2.7mm
77312018	1st MTP Fusion LCP	10°, right, 52	52	T	2.4/2.7mm
77312019	1st MTP Fusion LCP	10°, right, 57	57	T	2.4/2.7mm

The CareFix Hand, Foot & Ankle Locking Plate is designed for complex fractures in delicate anatomical regions. Featuring an anatomically contoured design, it precisely matches the curvature of hand, foot, and ankle bones, enabling stable fixation while supporting minimally invasive implantation. This system is ideal for comminuted fractures of the ankle joint, metacarpal/metatarsal fractures, and other intricate injuries requiring high-precision stabilization.

Indications

‌Comminuted ankle fractures‌, ‌metacarpal/metatarsal fractures‌, and ‌periarticular fractures‌.
‌Complex hand/foot trauma‌ requiring biomechanical stability in small bones.

Features

‌Anatomical curvature adaptation‌: Ensures optimal bone-plate contact for reduced soft tissue irritation.
‌Low-profile, tapered plate ends‌: Facilitates minimally invasive insertion in narrow anatomical spaces.
‌Multi-angle locking screws‌: Provides rigid fixation for comminuted or unstable fractures.
‌K-wire/suture hole compatibility‌: Enables temporary fixation and alignment during surgery.
‌Titanium alloy construction‌: Combines lightweight durability with biocompatibility for long-term safety.
